KS0497 Keyestudio V4.0 development board

Description

The processor core of Keyestudio V4.0 development board is ATMEGA328P-PU , fully compatible with ARDUINO UNO REV3.
It has 14 digital input/output pins(of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button.

What’s more, you can burn the firmware for ATMEGA328P-PU through the built-in ICSP port. The firmware of this chip is burnt well before delivery. Therefore, you don’t need to burn the firmware.

The power can be supplied through USB wire, DC head and Vin GND pins.

Specification

Microcontroller: ATMEGA328P-PU

USB to serial chip：CP2102

Operating Voltage: 5V

Input Voltage (recommended):DC 7-12V

Digital I/O Pins: 14 (D0-13)

PWM Digital I/O Pins：6 (D3 D5 D6 D9 D10 D11)

Analog Input Pins: 6(A0-A5)

DC Current per I/O Pin: 20 mA

DC Current for 3.3V Pin: 50 mA

Flash Memory: 32 KB (ATMEGA328P-PU) of which 0.5 KB used by bootloader

SRAM:2 KB (ATMEGA328P-PU)

EEPROM: 1 KB (ATMEGA328P-PU)

Clock Speed:16 MHz

LED_BUILTIN:D13

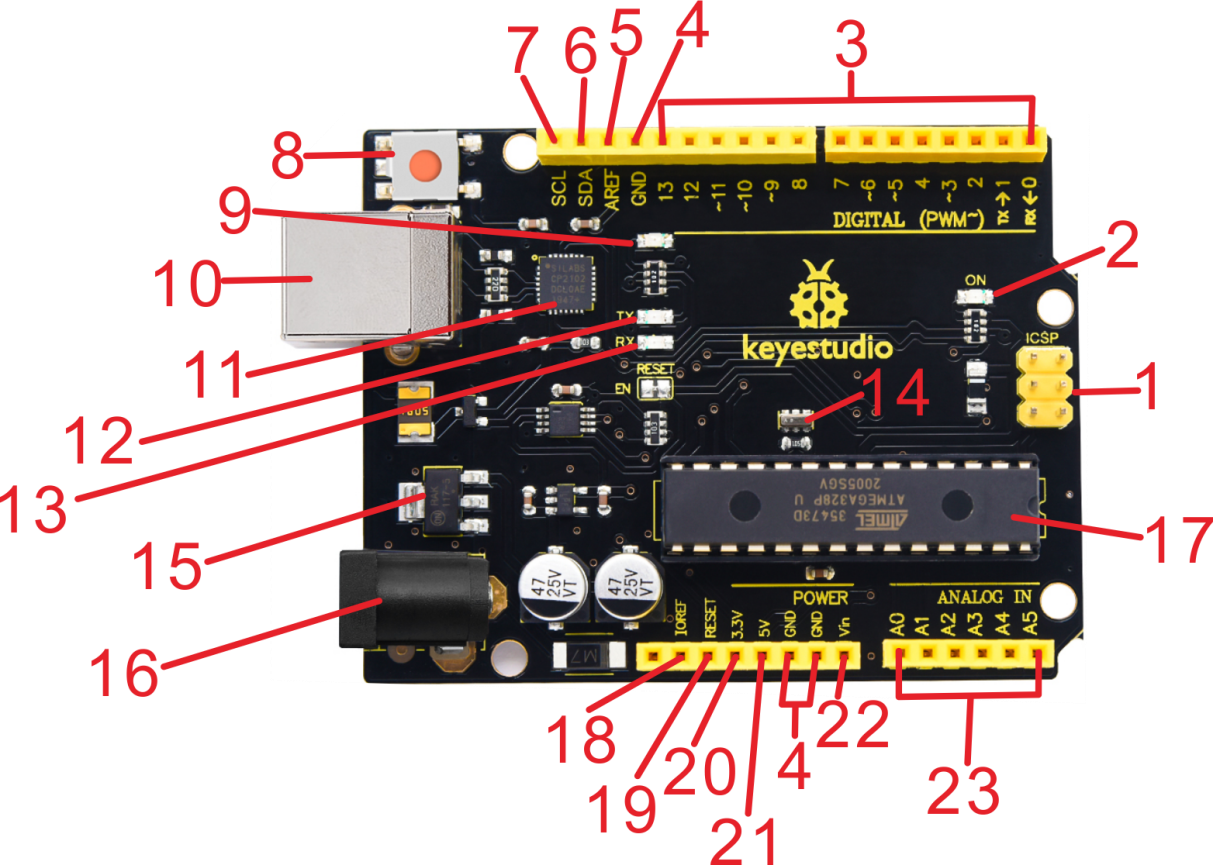

Pins and Parts Introduction

KS0497

1	ICSP (In-Circuit Serial Programming) Header	the AVR, an Arduino micro-program header consisting of MOSI, MISO, SCK, RESET, VCC, and GND. It is often called the SPI (serial peripheral interface) and can be considered an “extension” of the output. In fact, slave the output devices to the SPI bus host. When connecting to PC, program the firmware to ATMEGA328P-PU.
2	Power LED Indicator	Powering the Arduino, LED on means that your circuit board is correctly powered on. If LED is off, connection is wrong.
3	Digital I/O	Arduino MEGA has 14 digital input/output pins (of which 6 can be used as PWM outputs).These pins can be configured as digital input pin to read the logic value (0 or 1). Or used as digital output pin to drive different modules like LED, relay, etc. Using pinMode(), digitalWrite(), and digitalRead() functions.
4	GND	GND
5	AREF	Reference voltage (0-5V) for analog inputs. Used with analogReference(). Configures the reference voltage used for analog input (i.e. the value used as the top of the input range).
6	SDA	IIC communication pin
7	SCL	IIC communication pin
8	RESET Button	You can reset your Arduino board,
9	D13 LED	There is a built-in LED driven by digital pin 13. When the pin is HIGH value, the LED is on, when the pin is LOW, it’s off.
10	USB Connection	Arduino board can be powered via USB connector. All you needed to do is connecting the USB port to PC using a USB cable.
11	CP2102	USB serial chip, translate the USB signal of computer into serial signal
12	TX LED	Onboard you can find the label: TX (transmit) When Arduino board communicates via serial port, send the message, TX led flashes.
13	RX LED	Onboard you can find the label: RX(receive ) When Arduino board communicates via serial port, receive the message, RX led flashes.
14	Crystal Oscillator	How does Arduino calculate time? by using a crystal oscillator. The number printed on the top of the Arduino crystal is 16.000H9H. It tells us that the frequency is 16,000,000 Hertz or 16MHz.
15	Voltage Regulator	To control the voltage provided to the Arduino board, as well as to stabilize the DC voltage used by the processor and other components. Convert an external input DC7-12V voltage into DC 5V, then switch DC 5V to the processor and other components.
16	DC Power Jack	Arduino board can be supplied with an external power DC7-12V from the DC power jack.
17	Microcontroller	Each Arduino board has its own microcontroller. You can regard it as the brain of your board. The main IC (integrated circuit) on the Arduino is slightly different from the panel pair. Microcontrollers are usually from ATMEL. Before you load a new program on the Arduino IDE, you must know what IC is on your board. This information can be checked at the top of IC.
18	IOREF	This pin on the board provides the voltage reference with which the microcontroller operates. A properly configured shield can read the IOREF pin voltage and select the appropriate power source or enable voltage translators on the outputs for working with the 5V or 3.3V.
19	RESET Header	Connect an external button to reset the board. The function is the same as reset button.
20	Power Pin 3V3	A 3.3 volt supply generated by the on-board regulator. Maximum current draw is 50 mA.
21	Power Pin 5V	Provides 5V output voltage
22	Vin	You can supply an external power input DC7-12V through this pin to Arduino board.
23	Analog Pins	Onboard has 6 analog inputs, labeled A0 to A5.

4. Specialized Functions of Some Pins:

Serial Communication: D0 (RX) and D1 (TX)

PWM Pins (Pulse-Width Modulation): D3 D5 D6 D9 D10 D11

External Interrupts: D2 (interrupt 0), D3 (interrupt 1)

SPI communication: D10 (SS), D13 (SCK), D11 (MOSI), D12 (MISO).

These pins support SPI communication using theSPI library. The SPI pins are also broken out on the ICSP header, which is physically compatible with the Arduino Uno.

IIC communication: A4 (SDA); A5 (SCL).

5. Windows System

5.1 Download the Arduino IDE

When getting this control board, we need to install Arduino IDE

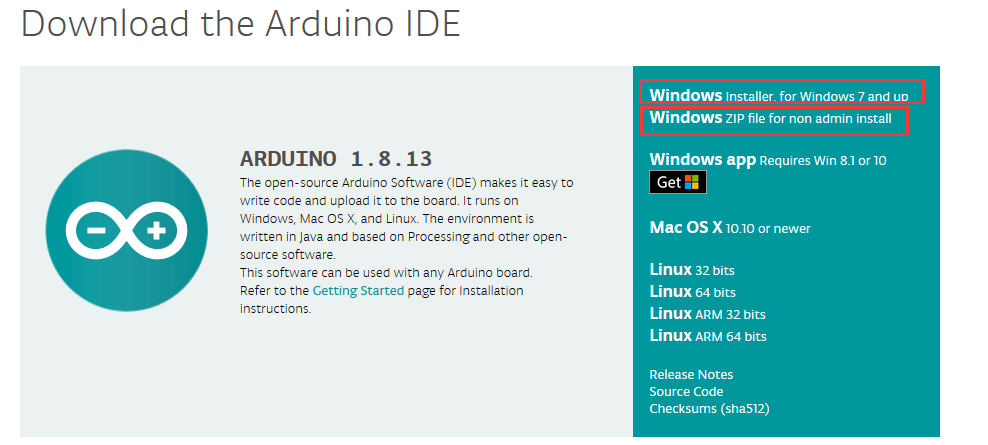

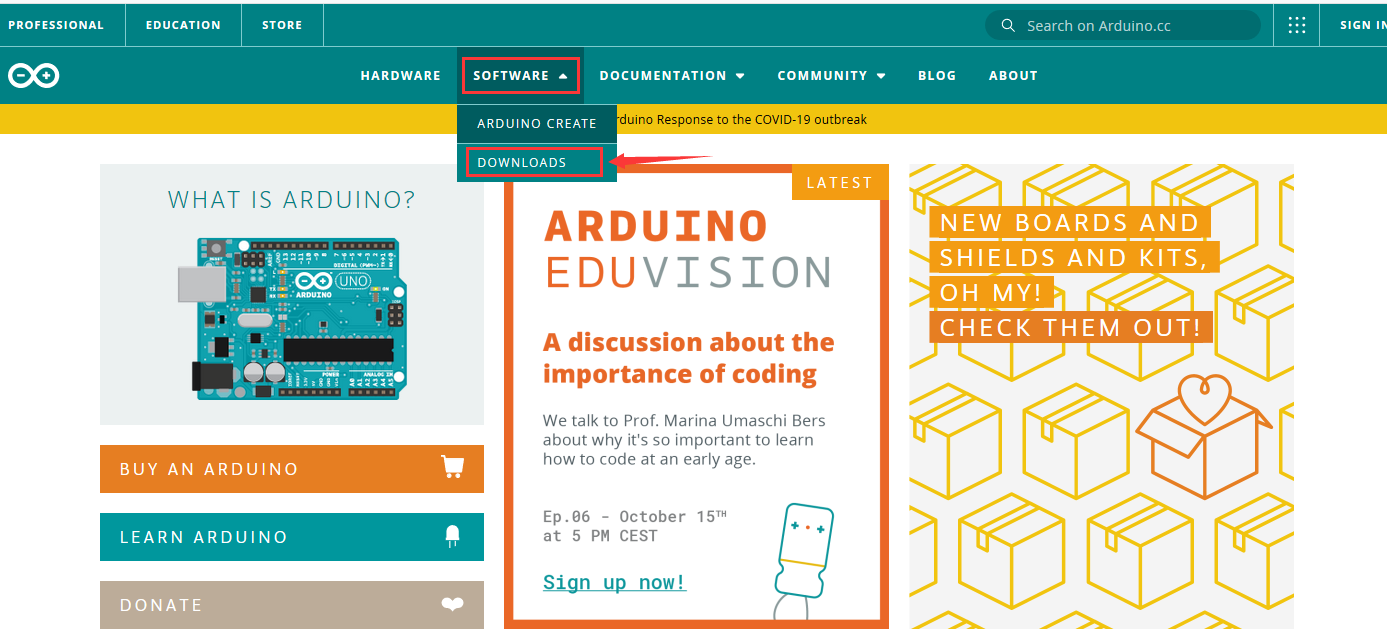

Enter the website https://www.arduino.cc/，and click>

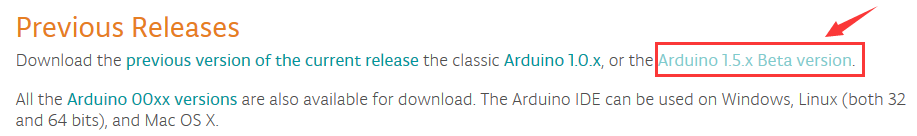

You can select the latest version—–1.8.13. Alternatively, the previous release is your another choice.

In this project, we use 1.8.12 version

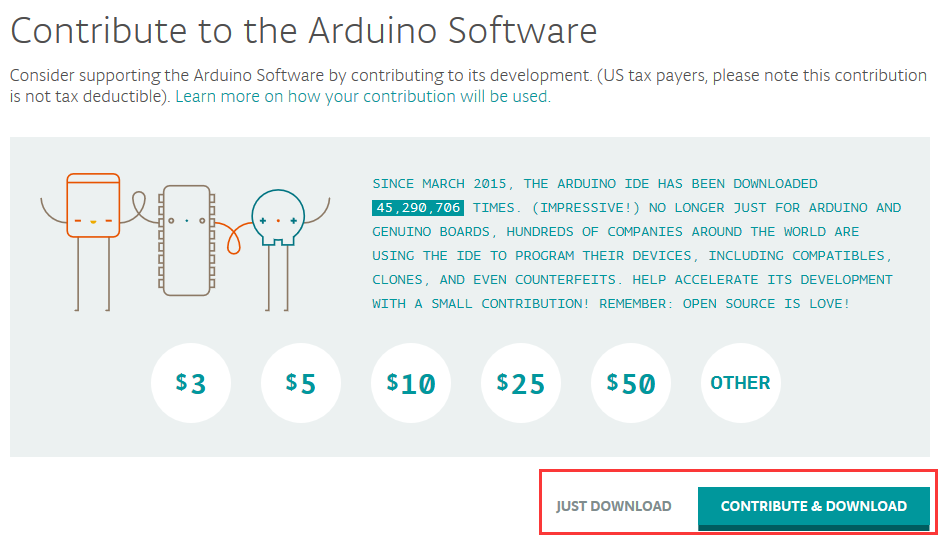

Click to view the below page

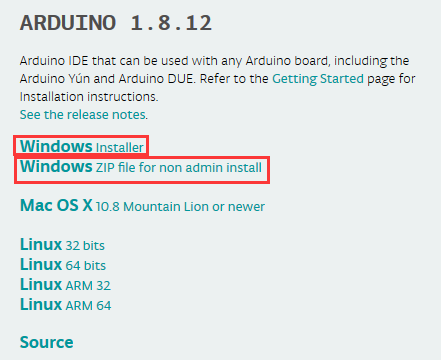

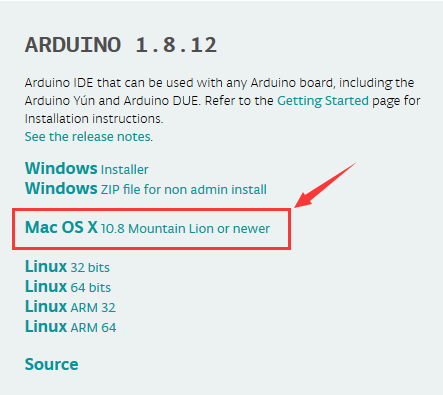

The Windows installer needs installing manually. Yet , the Windows zip file for non admin install，a zip file of Arduino 1.8.12 version, can be directly downloaded and installed.

Click icon to download Arduino IDE.

5.2 Installing Driver

Let’s install the driver of Keyestudio V4.0 development board. The USB-TTL chip on V4.0 development board adopts CP2102 serial chip.

Its driver files are included in the Arduino 1.8 version and above. Therefore, when the board is attached to the computer, the computer can recognize the driver of CP2102 automatically.

Note: If the version of Arduino IDE you download is below 1.8, you need to download the driver of CP2102.

Download the driver of CP2102:

https://fs.keyestudio.com/CP2102-WIN

If it is installed unsuccessfully, you need to install it manually.

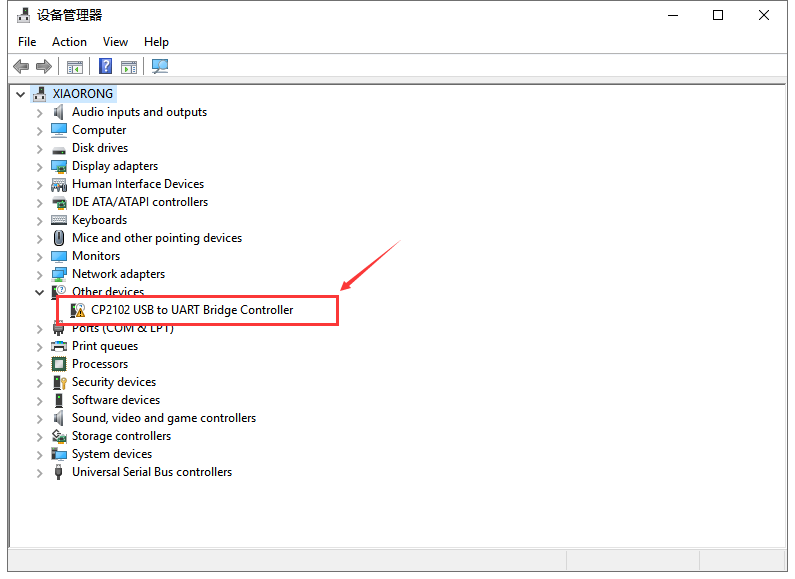

Click Computer—– Properties—– Device Manager, as shown below:

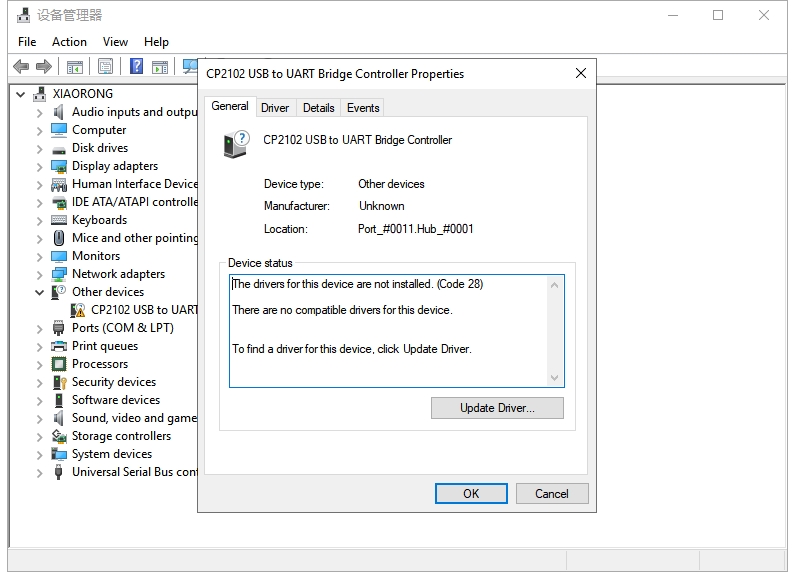

There is a yellow exclamation mark on the page, which implies the installation of the driver of CP2102 has failed.

Click “OK” to enter the following page and click “browse my computer for updated driver software”.

Click “Browse”, then search the driver of CP2102 and click “Next”,

There is a DRIVERS folder in Arduino software installed package（）, open driver folder and check the driver of CP210X series chips.

When opening the device manager, we will find the yellow exclamation mark disappear. The driver of CP2102 is installed successfully.

5.3Arduino IDE Setting

Clickicon，open Arduino IDE.

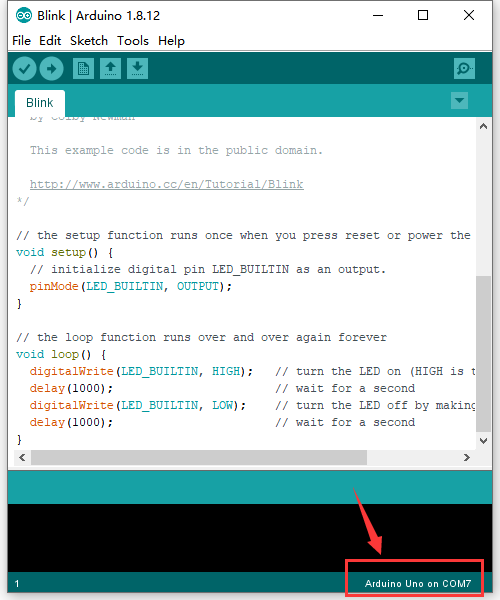

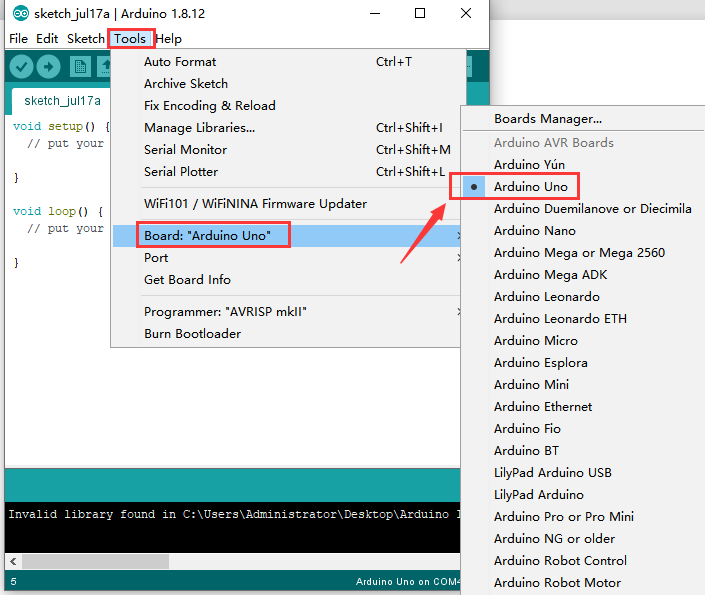

When downloading the sketch to the board, you must select the correct name of Arduino board that matches the board connected to your computer. As shown below;

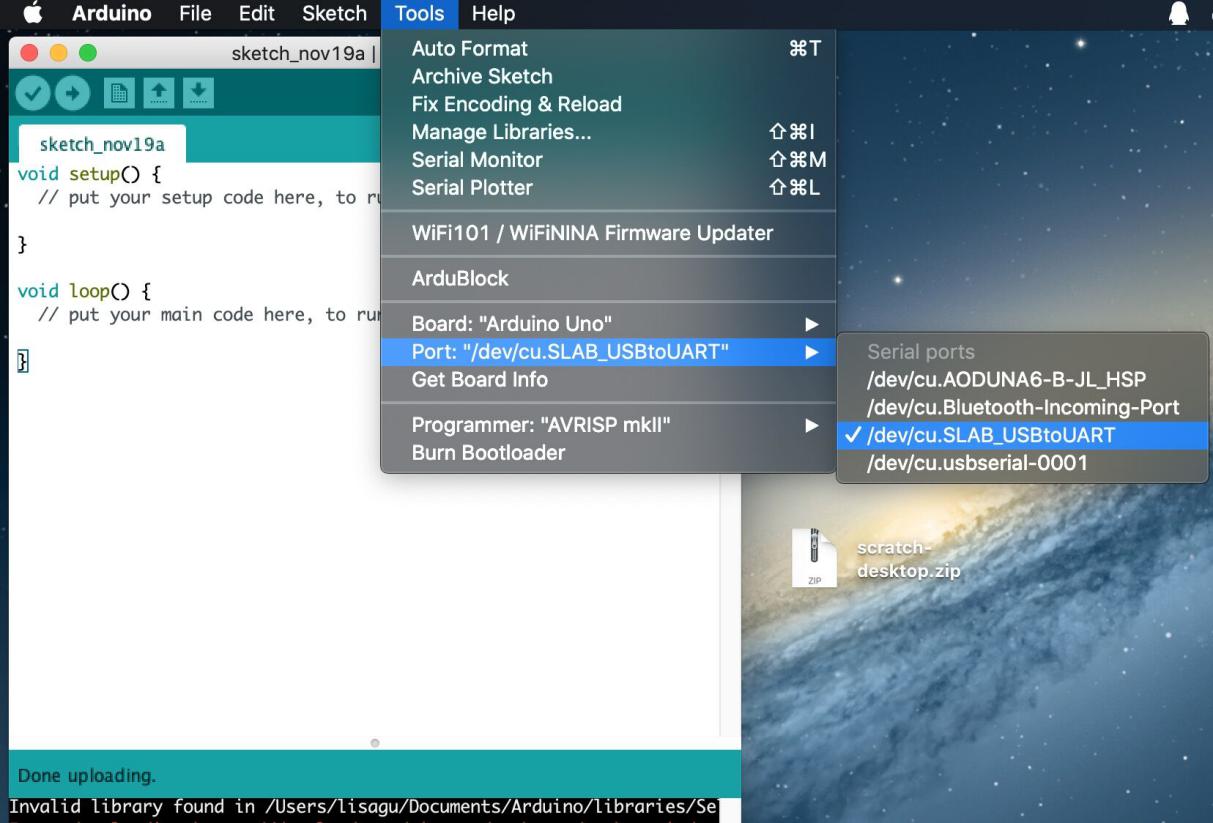

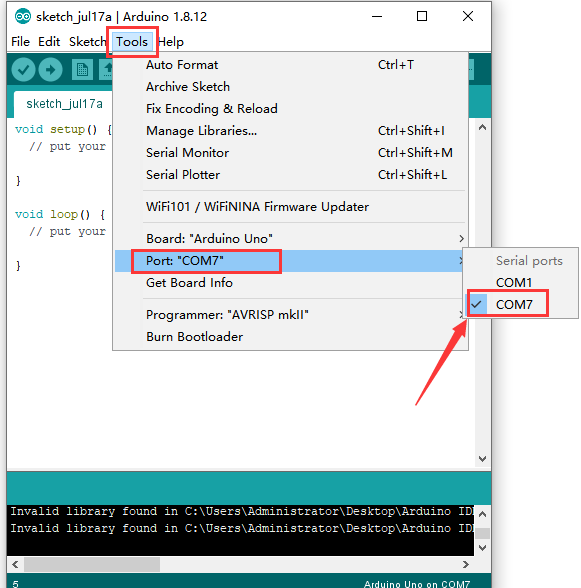

Then select the correct COM port (you can see the corresponding COM port after the driver is successfully installed)

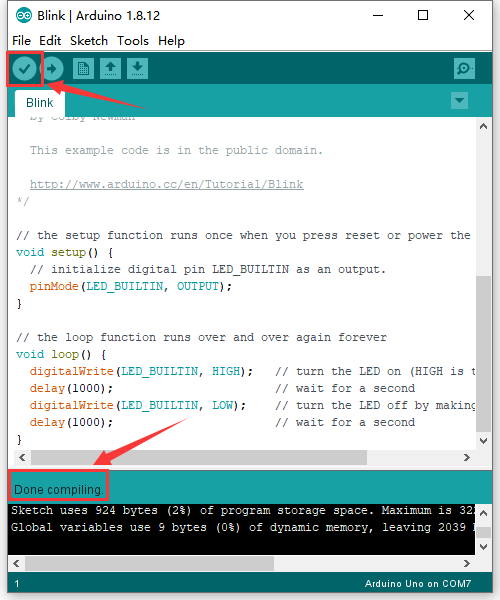

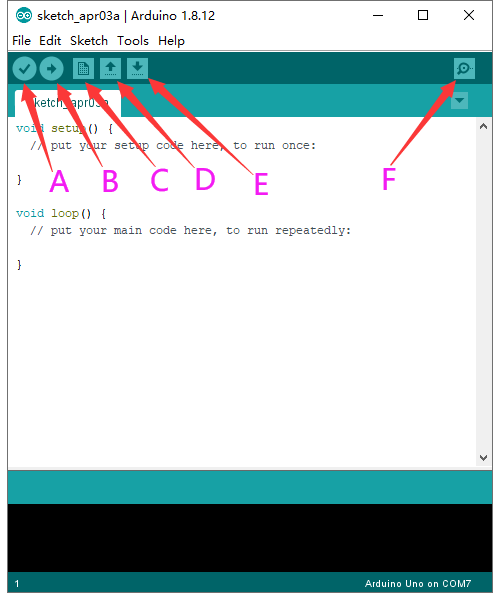

A- Used to verify whether there is any compiling mistakes or not.
B- Used to upload the sketch to your Arduino board.
C- Used to create shortcut window of a new sketch.
D- Used to directly open an example sketch.
E- Used to save the sketch.
F- Used to send the serial data received from board to the serial monitor.

5.4 Start first program

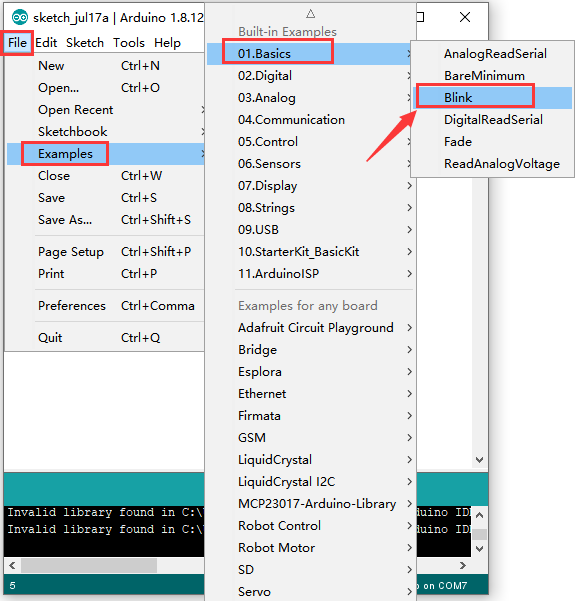

Open the file to select Example, and click BASIC>BLINK, as shown below:
